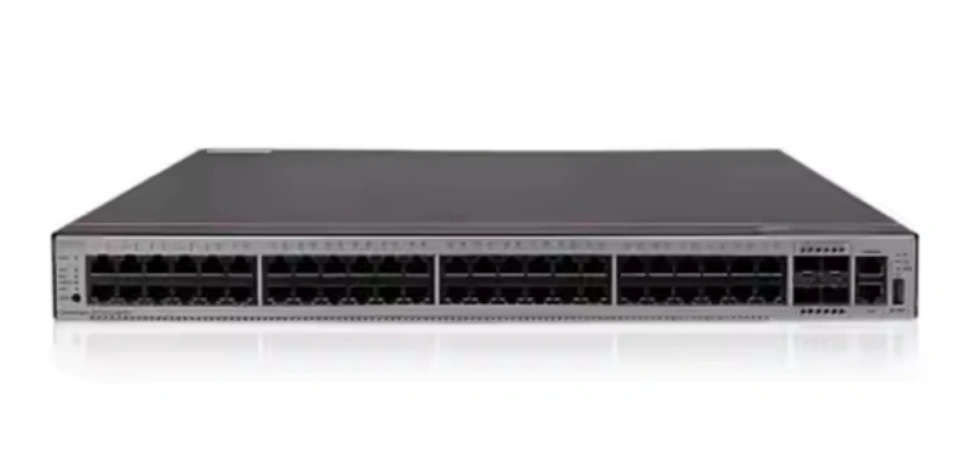

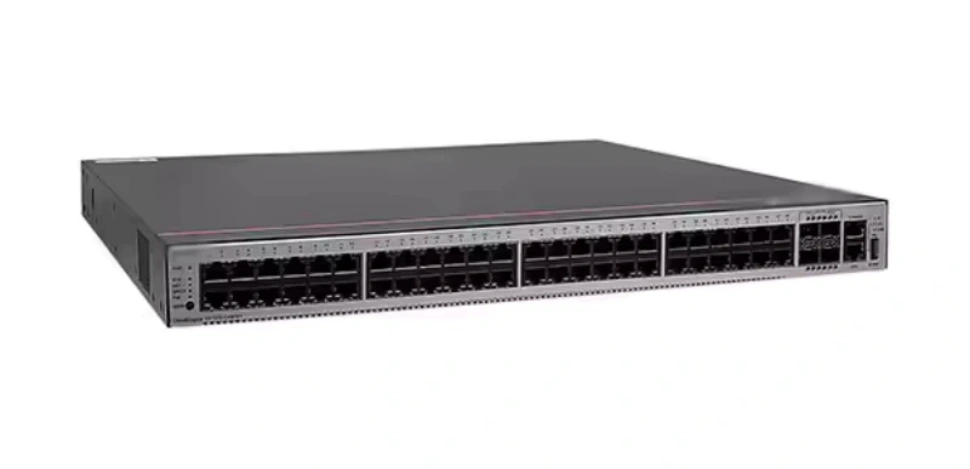

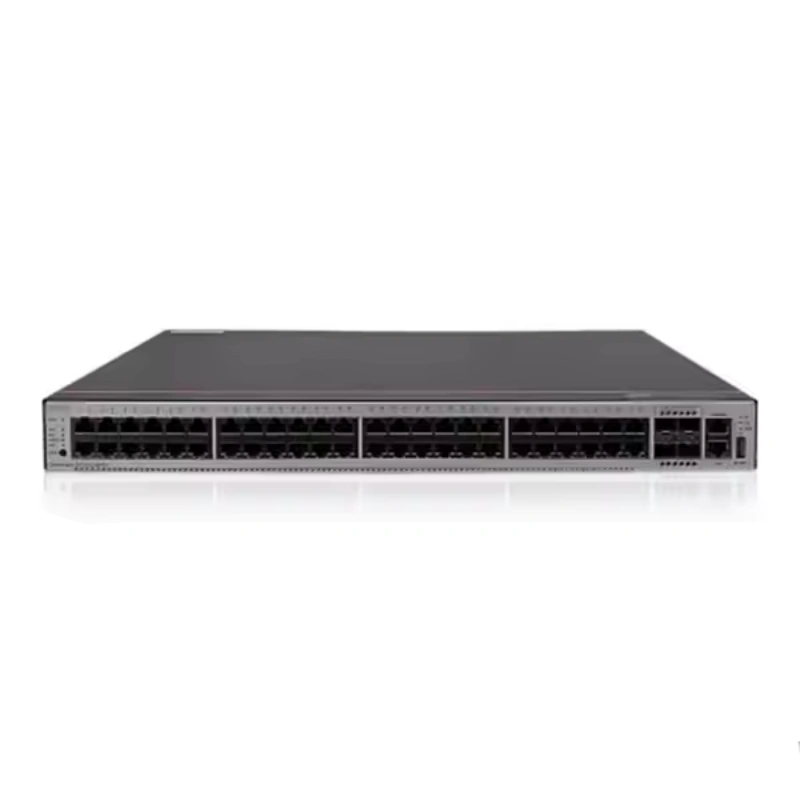

Huawei S5735 Series L48P4X Edge Switch S5735-L48P4X-A1

Huawei Series S5735-L48P4X-A1

The Huawei S5735-L48P4X-A1 is a high-performance multi-Gigabit Layer 3 switch designed for enterprise and campus networks, delivering wire-speed switching, advanced security, and flexible uplink scalability in a compact 1RU form factor. As part of Huawei’s CloudEngine S5735 Series, it features 48 x 1Gbps RJ45 ports with PoE+ support and 4 x 10G SFP+ uplinks, making it ideal for high-density access, IP telephony, and IoT deployments while enabling seamless LAN aggregation and future-proof network expansion.

Built for next-generation campus networks, the S5735-L48P4X-A1 provides carrier-class reliability with hitless software upgrades (ISSU), advanced QoS for real-time applications, and hardware-based security features such as MACsec encryption and Trusted Platform Module (TPM). Its energy-efficient design supports IEEE 802.3az (Energy Efficient Ethernet), reducing power consumption while maintaining low-latency forwarding for bandwidth-intensive applications.

High-Density, Carrier-Class Access Switch with Hyperscale Campus Networking Performance

S5735-L48P4X-A1

S5735-L48P4X-A1 Specification

Huawei S5735 Switch Specification
Description	S5735-L48P4X-A1 (4810/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, AC power)
Model	S5735-L48P4X-A1
Typical power consumption [W]	128,000
Total number of IPv4 routes (ARP plus learned routes)	58.7 W
Typical heat dissipation [BTU/hour]	200.29 BTU/hour
Maximum power consumption [W]	Not providing the PoE function: 76.1 W, 100% PoE loads: 456.1 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]	Not providing the PoE function: 259.66, 100% PoE loads: 1556.26
Number of card slots	0
Number of fans modules	2
Power supply mode	AC built-in
Maximum input current [A]	6 A
Memory	512 MB
Flash memory	512 MB
VLAN IDS	4000
Total Switched Virtual Interfaces (SVIs)	4,000
Console port	RJ45
Ingress protection level (dustproof/waterproof)	IP20
PoE	Supported

The Hyperscale Campus Access Platform

The enterprise-class multi-Gigabit access switch designed for high-density campus and IoT deployments, delivering 96Gbps switching capacity and 72Mpps forwarding performance through its 48x1G PoE+ ports and 4x10G SFP+ uplinks in a compact 1RU form factor, enabling ultra-low-latency (<10μs) forwarding, hardware-accelerated security (MACsec/TPM), and SDN-ready automation for enterprise access, Wi-Fi 6 backhaul, and converged voice/data networks.

S5735-L48P4X-A1

Hyperscale 5G Edge Access Platform

The platform meets the ultra-reliable and low-latency communication requirements of URLLC through hardware-level MACsec encryption, TSN time-sensitive network and QoS network slicing technology, and can flexibly connect to AirEngine 5G small base stations and Wi-Fi 6 access points. Its SDN-ready architecture is deeply integrated with the iMaster NCE cloud management platform, providing cost-effective edge network solutions for scenarios such as smart manufacturing and smart parks. At the same time, the 25G evolvable design reserves upgrade space for the 5G mid-transmission network.

S5735-L48P4X-A1

Abundant Security Features

Tianyida Electronic Industry Limited

About us

Tianyida Electronic Industry Limited specializes in business trade and technical services of Cisco switches, routers, optical modules, wireless access points, firewalls and other network equipment.

Our company is an authorized Cisco distributor, we source directly from Cisco headquarters in the name of the projects. As an officially authorized Cisco partner, we offer absolute quality products and 40% ~ 90% discount of Cisco GLP.

Packing information

Huawei S5735-L48P4X-A1 Switches is sealed in huawei original box.

We will also pack S5735-L48P4X-A1 with second box before shipping.

Shipment & Payment

Our products will be send via FedEx,DHL,TNT,UPS,EMS and so on.but the buyer is responsible for customs clearance and pay tariff when the product arrived destination country.

Payment Method

T/T,Western Union, HSBC and Money Gram will be accept. Faster payment will help you to get the items earlier.

Frequently Asked Questions

Frequently asked questions, we have integrated them into a self-service Q&A. If you have other questions, please leave us a message.

Why can't I access the WLAN view on the switch?

As-mode disable needs to be used to enable WLAN feature.

Why are Switch Ports down and faulty due to power over current?

No faults with the switch, so we need to check the IP Phones. Power overcurrent: indicates that the current of the PD connected to the interface exceeds the maximum current of the interface.

What are the common causes for SSH login failure on series switches?

The configuration is incorrect. For example, the STelnet service is disabled on the switch. Solution: Check whether the configuration is correct and complete by referring to "Example for Configuring STelnet Login."
