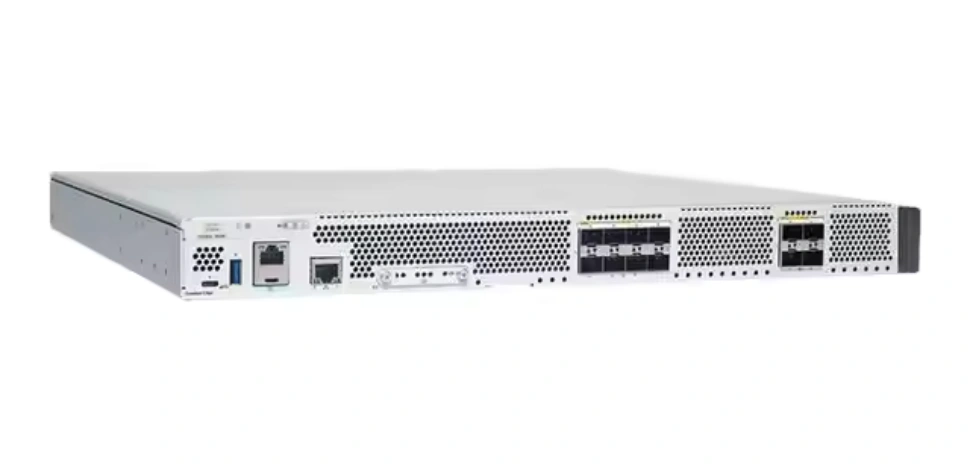

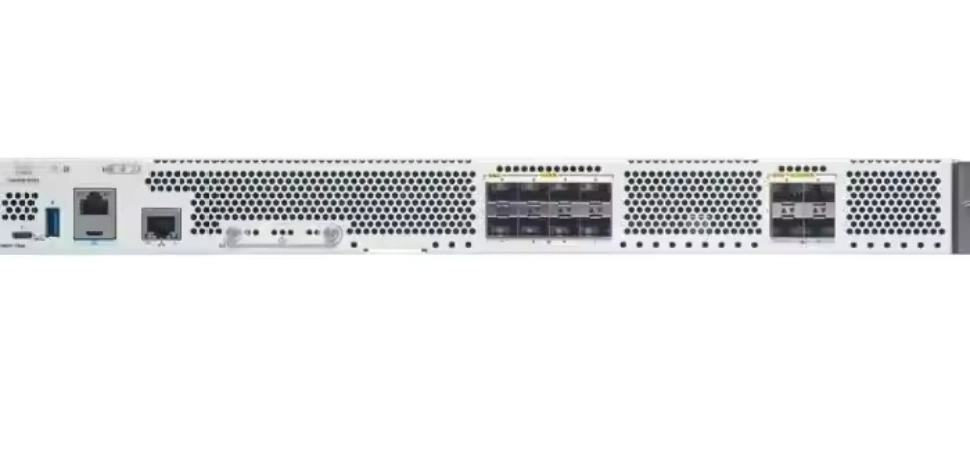

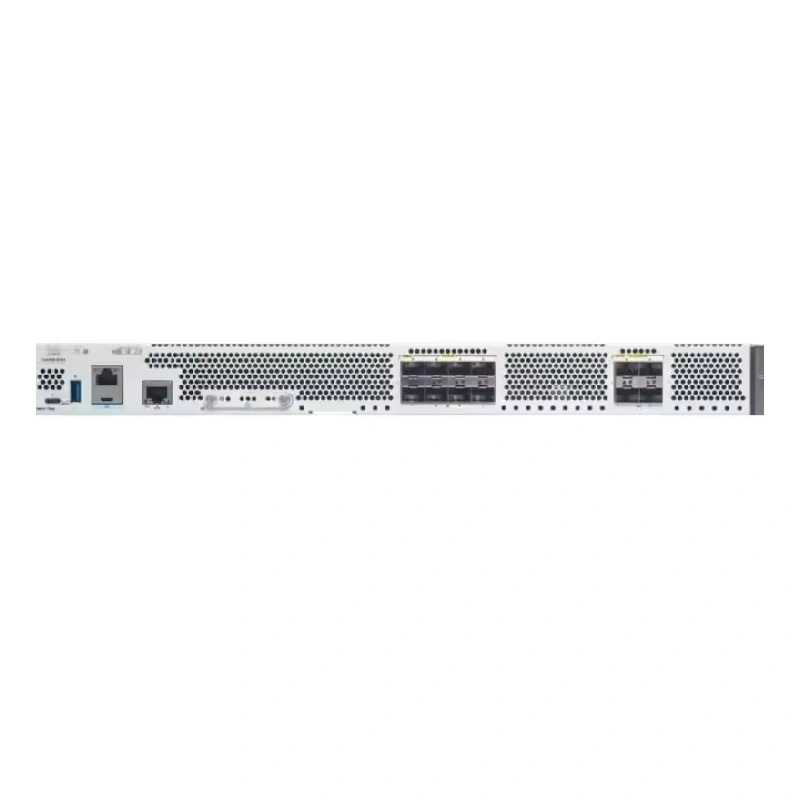

Cisco Catalyst 8500 Series 8S4X Edge Router C8500L-8S4X

Cisco Catalyst 8500 Series C8500L-8S4X

The Cisco Catalyst® C8500L-8S4X is a high-performance edge router designed for demanding enterprise and service provider deployments, delivering carrier-class routing capabilities in a compact 1RU form factor. As the flagship model of the Catalyst 8500 Series, it combines eight 10G/25G SFP28 ports with four 40G/100G QSFP28 uplinks to support high-density WAN aggregation and 5G mobile backhaul scenarios while enabling seamless cloud connectivity.

Built for next-generation networks, the C8500L-8S4X provides hyperscale routing performance with support for up to one million IPv4 routes, advanced network slicing for multi-service isolation, and 100G-ready interfaces for future-proof SD-WAN deployments. Its optimized architecture delivers wire-speed encryption and low-latency forwarding, making it ideal for bandwidth-intensive applications and large-scale edge implementations requiring carrier-grade reliability.

High-Density, Carrier-Class Edge Router with Hyperscale SD-WAN Performance

8500 C8500L-8S4X

C8500L-8S4X

C8500L-8S4X Specification

Cisco Catalyst 8500 Switch Specification
Supported IOS	Cisco IOS - XE
Network module options	Series 12-port SFP+, 8x1GE,4x10GE
Total number of MAC addresses	128,000
Total number of IPv4 routes (ARP plus learned routes)	1,000,000
IPv4 routing entries	1,000,000
IPv6 routing entries	512,000
Multicast routing scale	256,000
QoS scale entries	64,000
ACL scale entries	128,000
Packet buffer per SKU	96MB
Flexible NetFlow (FNF) entries	256,000
DRAM	16 GB
Flash	32 GB
VLAN IDS	4000
Total Switched Virtual Interfaces (SVIs)	4,000
Jumbo frames	9216 Bytes
Switching capacity	1.2 Terabits per second (Tbps) Full-Duplex
Forwarding rate	1.8 Billion Packets Per Second (Bpps)

The Carrier-Class Hyperscale Edge Platform

The carrier-grade edge router designed for hyperscale 5G and SD-WAN deployments, delivering 1.2Tbps throughput and 1.8Bpps packet forwarding through its 8x25G SFP28 and 4x100G QSFP28 interfaces in a compact 1RU form factor, enabling ultra-low latency (<5μs) mobile backhaul, encrypted 100G VPN tunnels, and hardware-isolated network slicing for service providers and large enterprises.

C8500L-8S4X

Hyperscale 5G Edge Platform

A high-density edge platform that redefines 5G and cloud networking with its 1RU chassis featuring eight 25G SFP28 and four 100G QSFP28 ports, delivering carrier-grade performance with <5μs latency for 5G fronthaul, secure 100G cloud connectivity, and hardware-isolated network slicing in space-constrained environments.

C8500L-8S4X

Abundant Security Features

Tianyida Electronic Industry Limited

About us

Tianyida Electronic Industry Limited specializes in business trade and technical services of Cisco switches, routers, optical modules, wireless access points, firewalls and other network equipment.

Our company is an authorized Cisco distributor, we source directly from Cisco headquarters in the name of the projects. As an officially authorized Cisco partner, we offer absolute quality products and 40% ~ 90% discount of Cisco GLP.

Packing information

Cisco Catalyst C8500L-8S4X Switches is sealed in cisco original box.

We will also pack C8500L-8S4X with second box before shipping.

Shipment & Payment

Our products will be send via FedEx,DHL,TNT,UPS,EMS and so on.but the buyer is responsible for customs clearance and pay tariff when the product arrived destination country.
