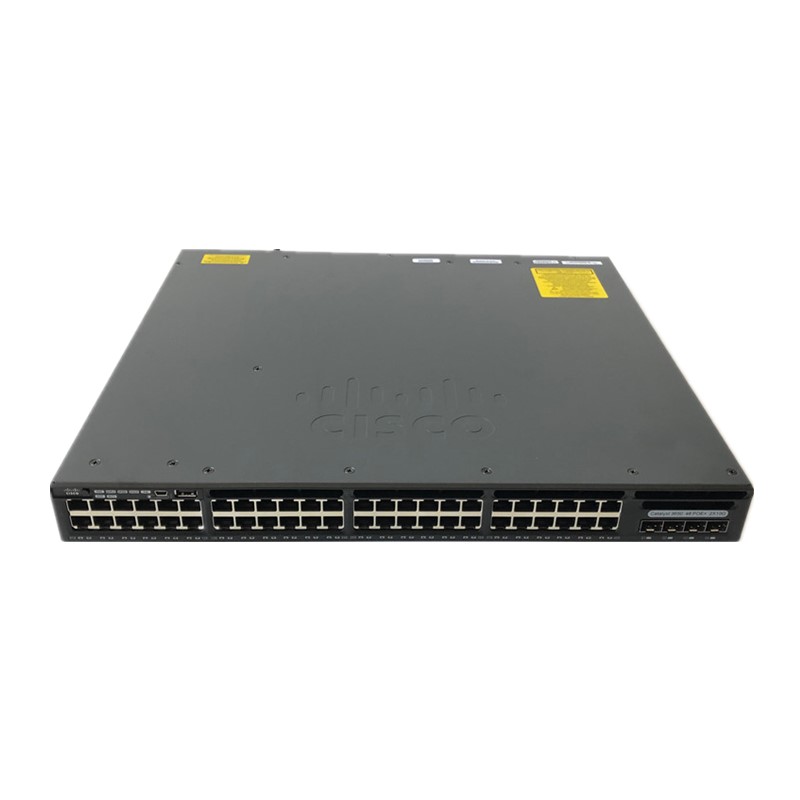

Cisco Catalyst 3650 48 Port SFP Switch WS-C3650-12X48UR-E

General

Device Type

Switch - 48 ports - L3 - managed - stackable

Enclosure Type

Desktop, rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 8 x 10 Gigabit SFP+ (uplink)

Power Over Ethernet (PoE)

UPOE

PoE Budget

660 W

Performance

Switching capacity: 472 Gbps ¦ Forwarding performance: 351.19 Mpps ¦ Stacking bandwidth: 160 Gbps

Capacity

IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

RIP-1, RIP-2, static IP routing, RIPng

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

RAM

4 GB

Flash Memory

4 GB

Status Indicators

Port transmission speed, port duplex mode, system, active, status, PoE

Interfaces

36 x 1000Base-T RJ-45 UPOE - 60 W ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE - 60 W ¦ 8 x 10GBase-X SFP+

Expansion Slots

1 (total) / 1 (free) x Stacking Module slot

Expansion / Connectivity

Power Device

Internal power supply - hot-plug

Installed Qty

1 (installed) / 2 (max)

Power Redundancy

Optional

Power Redundancy Scheme

1+1 (with optional power supply)

Power Provided

1100 Watt

Voltage Required

AC 120/230 V (50 - 60 Hz)

Power

Rack Mounting Kit

Included

MTBF

201,680 hours

Compliant Standards

CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A

Software Included

Cisco IOS IP Services

Width

17.5 in

Depth

19.1 in

Height

1.7 in

Weight

17.81 lbs
