Cisco Catalyst 2960

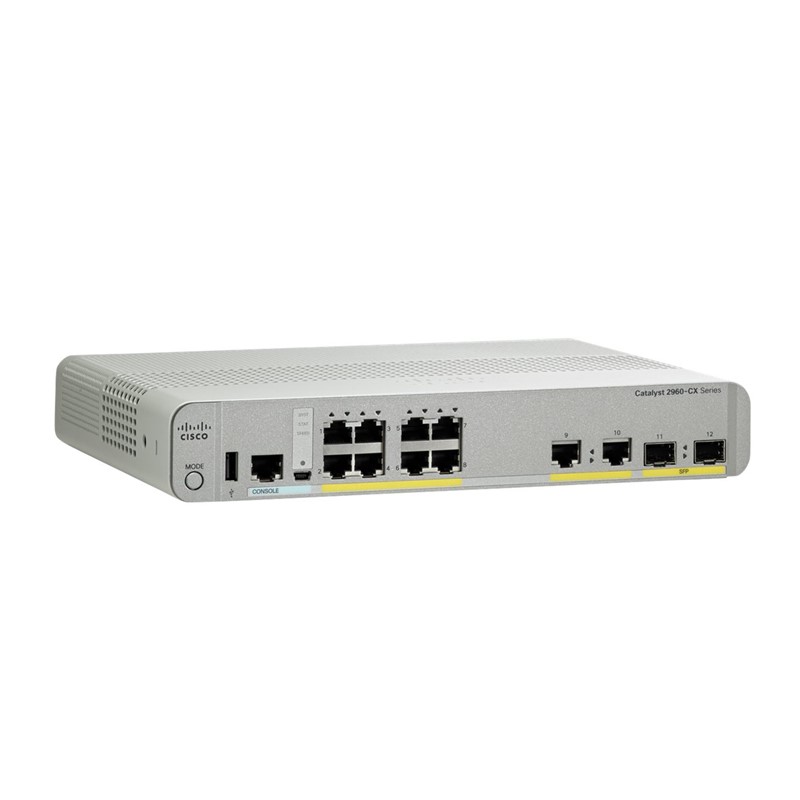

Cisco Catalyst 2960-CX 8 Port Gigabit Switch WS-C2960CX-8TC-L

WS-C2960CX-8TC-L Cisco Compact Switch

Product Specification:
  • Place of Origin : USA
  • Brand Name : CISCO
  • Certification : FCC
  • Model Number : WS-C2960CX-8TC-L
  • Minimum Order Quantity : 1/unit
  • Delivery Time : 3 days
Inquiry Now
Product Details



The Cisco Catalyst 2960-CX Series Compact Switch help optimize network deployments. These

Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul

in places where space is at a premium. With a single copper or fiber cable from the wiring closet,

Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access

points, surveillance cameras, PCs, and video endpoints.



Small form factor; fan-less design; silent operation



The switch can be used in open workspaces and other areas that can't tolerate equipment noise

and where multiple cable runs could be difficult, expensive, and intrusive.



Flexible mounting options



The switch can be mounted on the wall, under a desk, rack, DIN rail, or practically anywhere they're

needed.



10-Gigabit SFP+ uplinks



Accommodates business growth and increased traffic, such as aggregate upstream gigabit traffic

loads from 802.11ac Wi-Fi access points.





WS-2960CX-8TC-L Specification

Ethernet Ports

8 x 10/100/1000 Gigabit Ethernet

PoE
Output Ports

N/A

Available
PoE Power

N/A

Uplinks

2 x 1G copper plus

2 x 1G SFP

Default Software

LAN Base

Forwarding Bandwidth

12 Gbps

Switching Bandwidth (full-duplex capacity)

24 Gbps

Flash memory

128 MB

Memory DRAM

512 MB

Max VLANs

255

VLAN IDs

4000

Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9198 bytes

Forwarding rate 64 Byte Packet

17.9 mpps

Power connectors

- Customers can provide power to a switch by using the internal power supply.

The connector is located at the back of the switch.

The internal power supply is an autoranging unit

- The internal power supply supports input voltages between 100 and 240VAC
- Use the supplied AC power cord to connect the AC power connector to an AC power outlet

Indicators

Per-port status: Link integrity, disabled, activity, speed, full-duplex

System status: System, link status, link duplex, link speed

Dimensions
(H x W x D)

1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3 cm)

Weight

3.8 lb (1.72 Kg)

Package Weight

9.66 lb (4.38 Kg)

Operating* temperature up to 5000 ft (1524 m)

-5°C to +45°C

(+23°F to +113°F)

Operating* temperature up to 10,000 ft (3048 m)

-5°C to +45°C

(+23°F to +113°F)

Storage temperature up to 15,000 ft (4572 m)

-25°C to +70°C

(-13°F to +158°F)

Operating altitude

Up to 3048 m

(Up to 10,000 ft)

Storage altitude

Up to 4000 m

(Up to 15,000 ft)

Operating relative humidity

5% to 95% noncondensing

Storage relative humidity

5% to 95% noncondensing

Mean time between failure (MTBF)

756,260





Cisco Catalyst 2960-CX 8 Port Gigabit Switch WS-C2960CX-8TC-L is sealed in cisco original box.

We will also pack WS-C2960CX-8TC-L with second box before shipping.



Our products will be send via FedEx,DHL,TNT,UPS,EMS and so on.but the buyer is responsible for

customs clearance and pay tariff when the product arrived destination country.



Shipping Methods



2-4 business days.



2-4 business days



2-4 business days



5-7 business days.



Payment Method

T/T,Western Union, HSBC and Money Gram will be accept.Faster payment will help you to get the

items earlier.
