Cisco Catalyst 2960

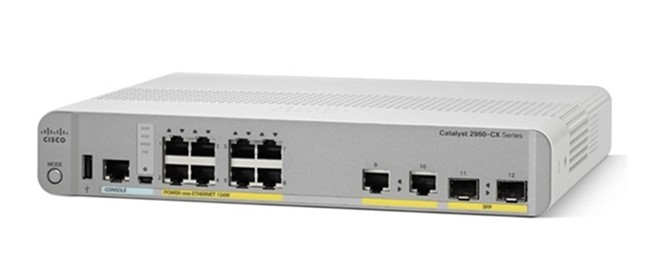

Cisco Catalyst 2960-CX 8 Port Gigabit Switch WS-C2960CX-8PC-L

WS-C2960CX-8PC-L Cisco Compact Switch 2960CX

Product Specification:
  • Place of Origin : USA
  • Brand Name : CISCO
  • Certification : FCC
  • Model Number : WS-C2960CX-8PC-L
  • Minimum Order Quantity : 1/unit
  • Delivery Time : 3 days
Inquiry Now
Product Details


The Cisco Catalyst Compact Switches easily expand your Catalyst switching infrastructure outside

the wiring closet to enable workspaces, extend wireless LANs, and connect PoE devices. These

fan-less, small form-factor switches are ideal for space-constrained deployments where multiple cable

runs would be challenging.


The Cisco Catalyst 2960-CX compact switches help optimize network deployments. These Gigabit

Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and

Power over Ethernet (PoE) connectivity in places where space is at a premium. With a single copper

or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices

such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.


With their quiet, fanless design and compact footprint, these switches offer flexible mounting options

and open up a variety of network design and connectivity options. Use them in offices, classrooms,

hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable

runs from the compact switches, allowing for flexibility in space redesign and growth as the devices

join the network - this eliminating the need for expensive and inflexible cabling infrastructure.


  • 8 Gigabit Ethernet ports with line rate forwarding performance


  • Gigabit copper, small form factor pluggable (SFP)


  • Power over Ethernet Plus (PoE+) support with up to 240W of PoE budget


  • Fanless design and silent operation


WS-2960CX-8PC-L Specification

Ethernet Ports

8 x 10/100/1000 Gigabit Ethernet

Output Ports

8 PoE+

PoE Power



2 x 1G copper plus

2 x 1G SFP

Default Software

LAN Base

Forwarding Bandwidth

12 Gbps

Switching Bandwidth (full-duplex capacity)

24 Gbps

Flash memory

128 MB

Memory DRAM

512 MB





Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9198 bytes

Forwarding rate 64 Byte Packet

17.9 mpps

Power connectors

- Customers can provide power to a switch by using the internal power supply.

The connector is located at the back of the switch.

The internal power supply is an autoranging unit

- The internal power supply supports input voltages between 100 and 240VAC
- Use the supplied AC power cord to connect the AC power connector to an AC power outlet


Per-port status: Link integrity, disabled, activity, speed, full-duplex

System status: System, link status, link duplex, link speed

(H x W x D)

1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)


5.0 lb (2.27 Kg)

Package Weight

10.25 lb (4.65 Kg)

Operating* temperature up to 5000 ft (1524 m)

-5°C to +45°C

(+23°F to +113°F)

Operating* temperature up to 10,000 ft (3048 m)

-5°C to +45°C

(+23°F to +113°F)

Storage temperature up to 15,000 ft (4572 m)

-25°C to +70°C

(-13°F to +158°F)

Operating altitude

Up to 3048 m

(Up to 10,000 ft)

Storage altitude

Up to 4000 m

(Up to 15,000 ft)

Operating relative humidity

5% to 95% noncondensing

Storage relative humidity

5% to 95% noncondensing

Mean time between failure (MTBF)




Cisco Catalyst 2960-CX 8 Port Gigabit Switch WS-C2960CX-8PC-L is sealed in cisco original box.

We will also pack WS-C2960CX-8PC-L  with second box before shipping.


Our products will be send via FedEx,DHL,TNT,UPS,EMS and so on.but the buyer is responsible for

customs clearance and pay tariff when the product arrived destination country.


Shipping Methods


2-4 business days.


2-4 business days


2-4 business days


5-7 business days.


Payment Method

T/T,Western Union, HSBC and Money Gram will be accept.Faster payment will help you to get the

items earlier.
